Fermenter - Lambda MINI-4-gas automatic gas mixing module software

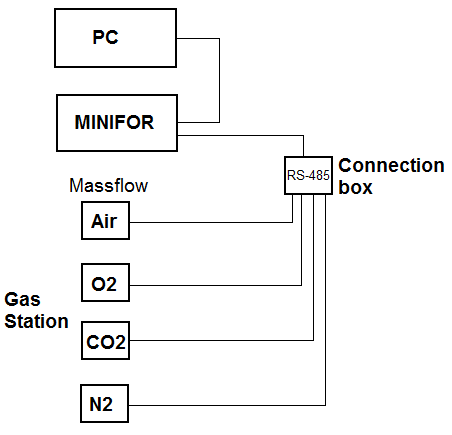

The MINI-4-gas automatic gas mixing module software is the extension of the SIAM software which allows a complete automatic gas-mix control for up to 4 MINIFOR parallel-reactors (4 x 4 gas flow controller).

User can create their own application for the desired gas mix within a few minutes.

Minimal PC requirement: Pentium III, 1GHz, soundcard, Windows NT4 or higher

Features

• Easy set-point adjustment of each gas selected


• Low & High flow rate limits for the gases


• pO₂ control with Air & Oxygen (O2-enrichment)


• pH control with Carbon dioxide


• Constant total gas flow (exclusive flow)

Process Control

• Actual and set points of the parameters: temperature, pH, agitation, pO2, air flow rate, the amount of base and acid, additional parameter X


• The desired gas flow rate control of each gas e.g: N₂, CO₂, O₂, air or according to customer’s selection


• Configuration

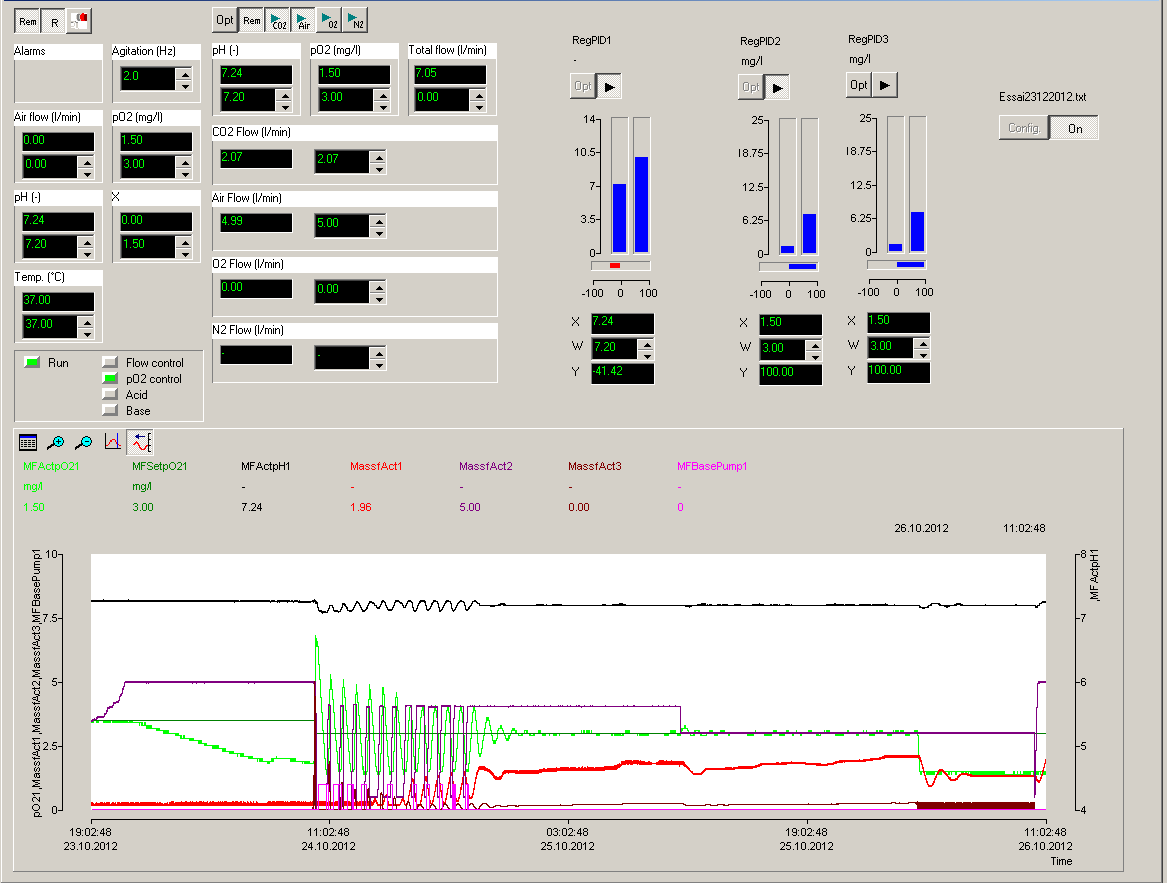

• The parameter values can be visualized and compared using graphs with respect to time.


• Data acquisition, calculations & gas transfer rates


• Data storage for comparison of experiments and for process optimization


• No software license issues for adding further units and lab instruments. (more than 4 MINIFOR units can be connected even if running without 4-gas control module)
